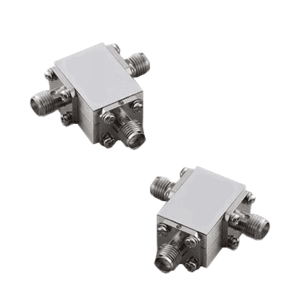

Broadband Circulators
General Specifications
§ Frequency coverage to 18 GHz
§ Power up to 20W
§Temperature range from -30C to +70C
If you don’t see what you’re looking for, please email us at alen@electro-photonics.com and we may be able to help you.
| Part Number | Frequency (GHz) | Insertion Loss (dB) | VSWR (max) | Isolation (dB) | Power (W) | Datasheet |
|---|---|---|---|---|---|---|
| EPCI-1000-2000-SF | 1 to 2 | 0.7 | 1.4 | 15 | 20 | |
| EPCI-1350-2700-SF | 1.35 to 2.7 | 0.6 | 1.35 | 17 | 20 | |
| EPCI-2000-4000-SF | 2 to 4 | 0.6 | 1.4 | 16 | 20 | |
| EPCI-3000-6000-SF | 3 to 6 | 0.6 | 1.4 | 16 | 20 | |
| EPCI-4000-8000-SF | 4 to 8 | 0.6 | 1.3 | 18 | 20 | |
| EPCI-5000-10000-SF | 5 to 10 | 0.6 | 1.3 | 18 | 20 | |
| EPCI-6000-12000-SF | 6 to 12 | 0.6 | 1.4 | 16 | 10 | |
| EPCI-8000-12000-SF | 8 to 12 | 0.5 | 1.30 | 20 | 10 | |
| EPCI-10000-15000-SF | 10 to 15 | 0.5 | 1.25 | 20 | 10 | |
| EPCI-12000-18000-SF | 12 to 18 | 0.6 | 1.35 | 18 | 10 | |
| EPCI-8000-18000-SF | 8 to 18 | 0.8 | 1.5 | 16 | 10 | |
| EPCI-6000-18000-SF | 6 to 18 | 1.5 | 1.9 | 10 | 10 | |
