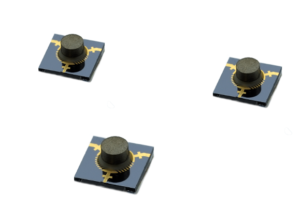

Microstrip Circulators
General Specifications
§ Frequency coverage to 36 GHz
§ Power up to 30W
§Temperature range from -55C to +85C
If you don’t see what you’re looking for, please email us at alen@electro-photonics.com and we may be able to help you.
| Part Number | Frequency (GHz) | Insertion Loss (dB) | VSWR (max) | Isolation (dB) | Power (W) | Datasheet |
|---|---|---|---|---|---|---|
| EPCI-5000-6000-MC | 5 – 6 | 0.6 | 1.35 | 17 | 30 | |
| EPCI-5200-5900-MC | 5.2 – 5.9 | 0.5 | 1.3 | 18 | 30 | |
| EPCI-6500-7100-MC | 6.5 – 7.1 | 0.6 | 1.3 | 18 | 30 | |
| EPCI-8000-12000-MC | 8 – 12 | 0.6 | 1.35 | 17 | 20 | |
| EPCI-8600-10600-MC | 8.6 – 10.6 | 0.6 | 1.35 | 17 | 20 | |
| EPCI-12000-17000-MC | 12 – 17 | 0.8 | 1.45 | 15 | 10 | |
| EPCI-14000-18000-MC | 14 – 18 | 0.7 | 1.4 | 16 | 10 | |
| EPCI-14500-15500-MC | 14.5 – 15.5 | 0.5 | 1.25 | 20 | 10 | |
| EPCI-19500-23000-MC | 19.5 – 23 | 0.8 | 1.4 | 15 | 5 | |
| EPCI-24500-26500-MC | 24.5 – 26.5 | 1 | 1.4 | 16 | 5 | |
| EPCI-34000-36000-MC | 34 – 36 | 1.2 | 1.4 | 16 | 5 | |
