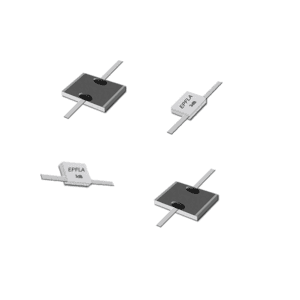

High Power RF & Microwave Flangeless Attenuators
General Specifications
§ Standard Attenuation Values: 1 – 30dB
§ Frequency: DC – 3 GHz
§ Substrate Material: BeO (Beryllium Oxide), AlN (Aluminum Nitride)
§ Resistive Film: Thick Film
§ Power: 20 – 100 W CW
Lead-Free, RoHS compliant
If you don’t see what you’re looking for, please email us at alen@electro-photonics.com and we may be able to help you.
| Product Image | EP Part Number | Frequency (GHz) | Power (W) | VSWR (max) | Dimensions [Inch] | Dimensions [mm] | Datasheet | Substrate Material |
|---|---|---|---|---|---|---|---|---|

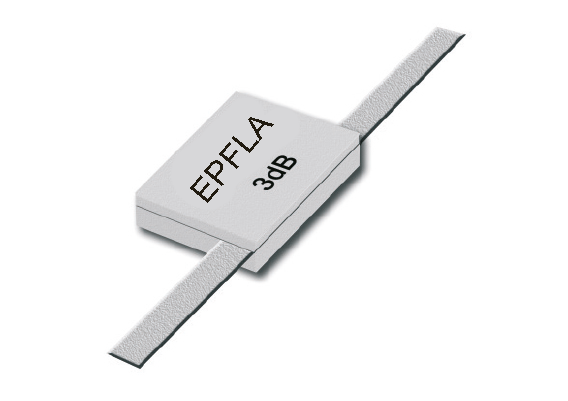

| EPFLA-250-B20-XXX | 3 | 20 | 1.25 | 0.250 x 0.250 x 0.083 | 6.35 x 6.35 x 2.1 | | BeO (Beryllium Oxide) |

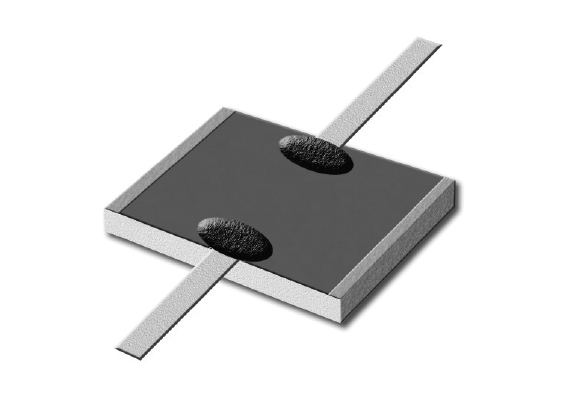

| EPFLA-350-B50-XXX | 3 | 50 | 1.25 | 0.350 x 0.230 x 0.043 | 8.89 x 5.84 x 1.1 | | BeO (Beryllium Oxide) |
| EPFLA-350-B100-XXX | 3 | 100 | 1.2 | 0.350 x 0.225 x 0.043 | 8.89 x 5.71 x 1.1 | | BeO (Beryllium Oxide) |
