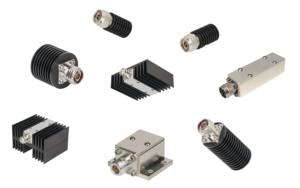

High Power RF & Microwave Coaxial Terminations
General Specifications
§ Standard Resistance: 50 Ohms ± 5%
§ Frequency: DC – 67 GHz
§ Power: up to 250W
If you don’t see what you’re looking for, please email us at alen@electro-photonics.com and we may be able to help you.
| Product Image | EP Part Number | Frequency (GHz) | Power (W) | VSWR (max) | Impedance (Ω) ± 5% | Connector | Datasheet |
|---|---|---|---|---|---|---|---|

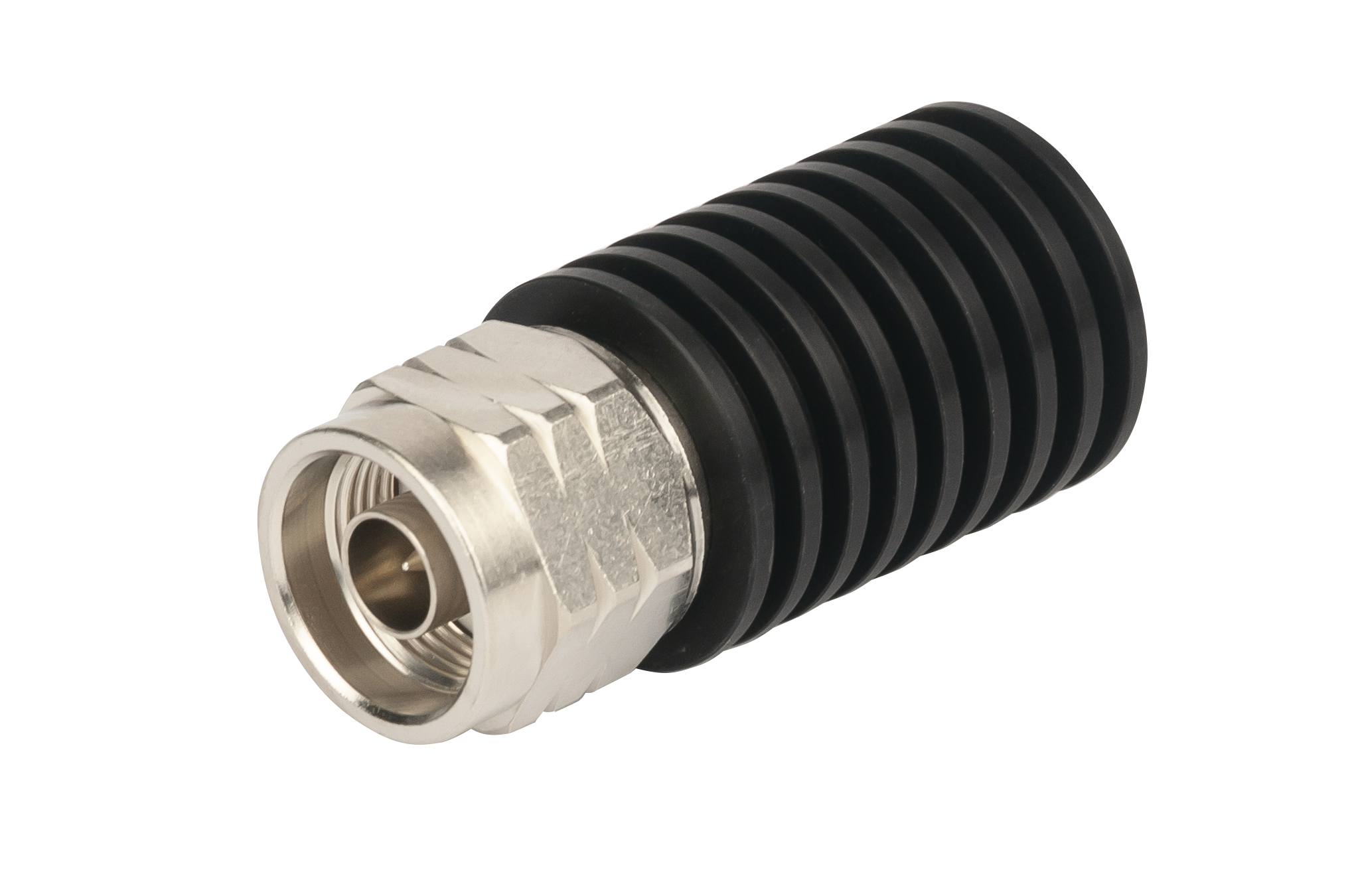

| EPTC-10-50-NM | 5 | 10 | 1.2 | 50 | N (m ) | |

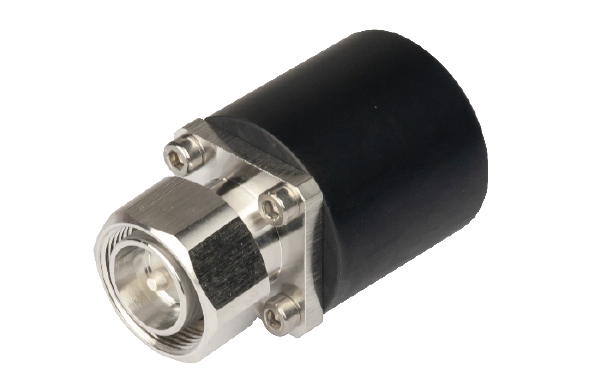

| EPTC-6-50-4.3-10M | 4 | 6 | 1.2 | 50 | 4.3-10 (m or f) | |

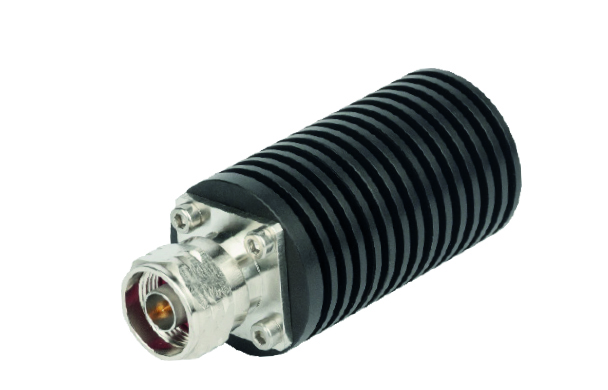

| EPTC-25-50-NM | 4 | 25 | 1.2 | 50 | N- male | |
| EPTC-60-50-NF | 6 | 60 | 1.2 | 50 | N -female | |

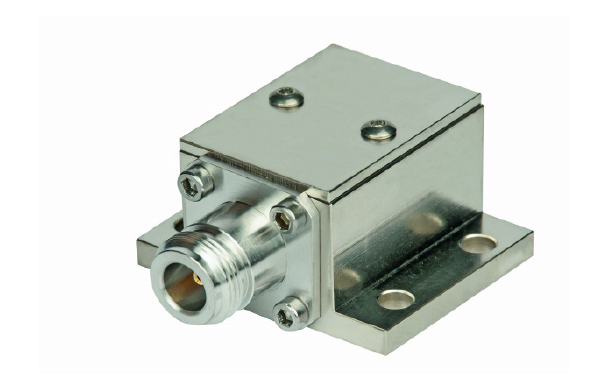

| EPTC-250-50-NM | 6 | 250 | 1.25 | 50 | N- male | |

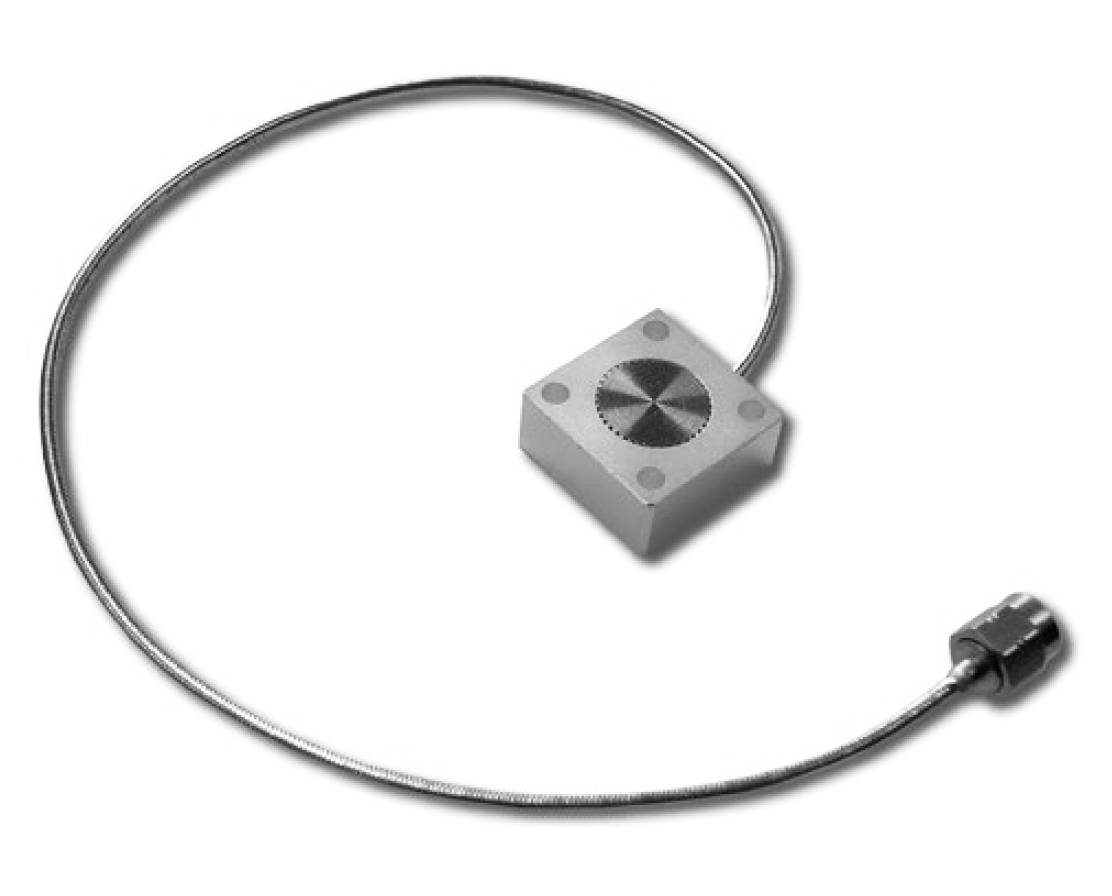

| EPCRT-150-2-50-5 | 2 | 150 | 1.06 | 50 | SMA | |
| EPTC-2-50-67X | 67 | 2 | 1.45 | 50 | 1.85 mm, male or female | |
| EP-SWT-001 | DC – 26.5 | 2 | 1.30 | 50 | |
