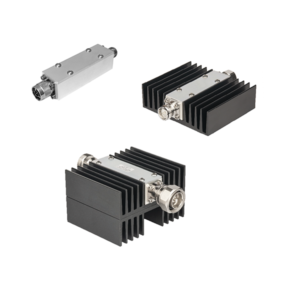

High Power RF & Microwave Coaxial Attenuators
General Specifications
§ Standard Attenuation Values: 1 – 30dB
§ Frequency: DC – 6 GHz
§ Power: up to 150W
If you don’t see what you’re looking for, please email us at alen@electro-photonics.com and we may be able to help you.
| Product Image | EP Part Number | Frequency (GHz) | Power (W) | VSWR (max) | Connector | Datasheet |
|---|---|---|---|---|---|---|

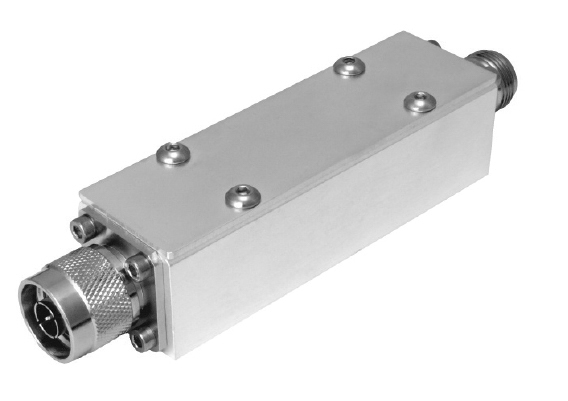

| EPAC-25-XX-NM | 6 | 25 | 1.3 | N (m/f ) or 7-16 (m/f) | |

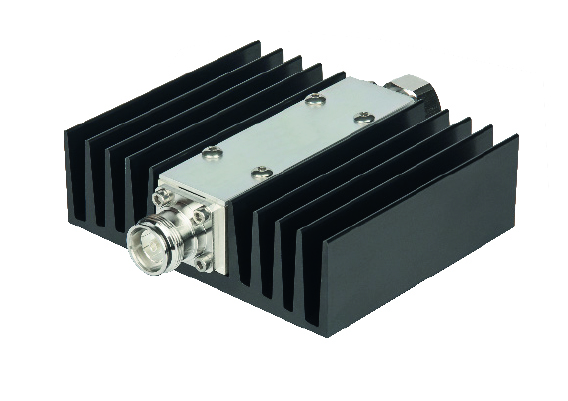

| EPAC-40-XX-7-16 | 4 | 40 | 1.3 | 7-16 (m/f) 4.3-10 m/f | |
| EPAC-60-XX-NM | 6 | 60 | 1.3 | N (m/f ) or 7-16 (m/f) | |

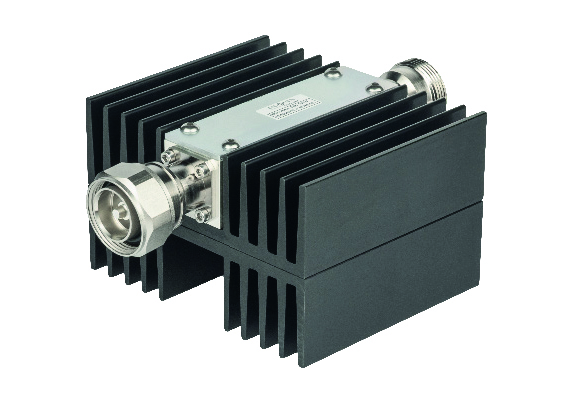

| EPAC-100-XX-NM | 6 | 100 | 1.3 | N (m/f ) or 7-16 (m/f) | |
| EPAC-150-XX-NM | 4 | 150 | 1.3 | N (m/f ) or 7-16 (m/f) | |
